Highlight

Tram Forward Collision Warning System

Detecting critical situations

Tram forward collision warning system

For tram drivers, tough situations like heavy commuter traffic or poor visibility quickly become serious challenges. Obstacles on the rails or road users who approach the rails have to be detected in enough time for the risks to be recognized.

When it comes to its collision warning system for light rail vehicles, Bosch Engineering relies on proven components from automotive technology to actively reduce the expensive consequences of accidents or prevent them altogether.

improved safety

through avoiding collisions by means of early warning system

high availability

of light rail vehicles: fewer accidents means less vehicle downtime

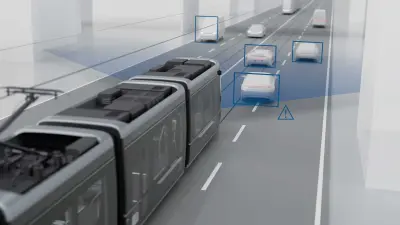

Photo of a tram with their functionalities

Task and Function

The collision warning system for trams supports drivers in critical situations. Especially in congested traffic or poor visibility conditions, the system warns the driver about obstacles on the rails in plenty of time. This lets drivers avoid accidents, or at least significantly limit the effects.

Consisting of a multi purpose camera, a radar sensor, and a control unit, the system monitors the track ahead and any possible obstacles in front of the vehicle in real time. If it detects a potential collision, it sends a warning to the driver. And should the driver respond too late or not at all, the collision warning system can initiate automatic braking.

lower cost

of repairs, since collision damage is considerably less or even absent altogether

Detecting critical situations

The multi purpose camera monitors the track ahead and transmits the data in real time to the radar sensor. Independent of weather and light conditions, the radar sensor recognizes potential obstacles in front of the vehicle from a distance of up to 80 meters away. Taking the vehicle’s speed into consideration, the system uses the information to determine the danger of a collision.

Photo of the collision warning system

In type 1 of the system, it determines whether the threat presented by an obstacle warrants a visual and/or acoustic warning to the driver. Type 2 of the system offers a further function: it sends a signal via relay output to trigger automatic braking, should the driver respond too late or not at all to the system’s warning.

collision warning system

simple integration

thanks to compact components

Certificate

Our Tram Forwar Collision Warning System has been certified by accreditation agency TÜV Süd.

TÜV Süd Certificate

TÜV Süd Certificate

Download certificate
